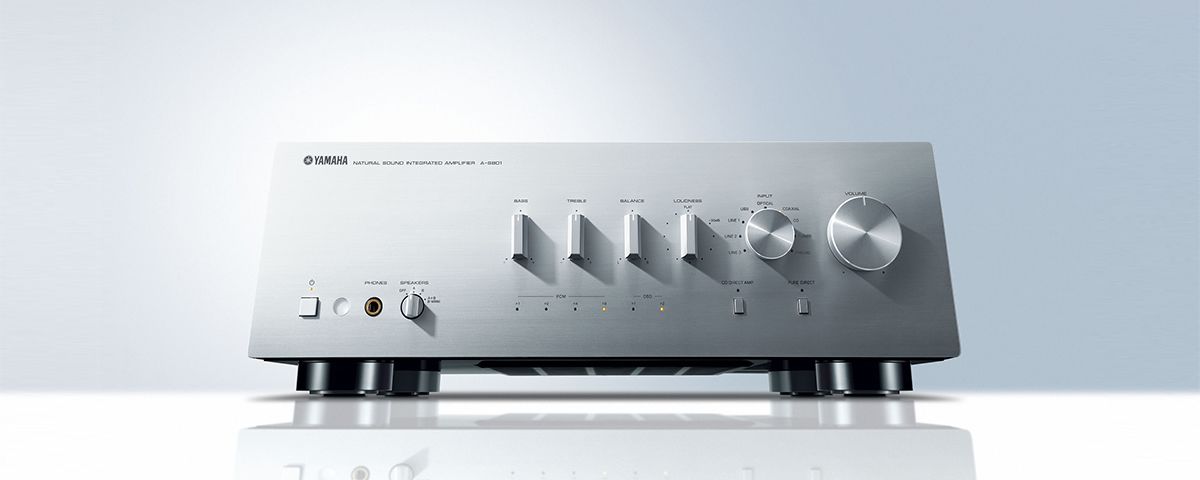

A-S801
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) 100 W + 100 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms) 140/170/220/290 W
Damping Factor 240
Frequency Response 10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) 0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD) 99dB (input shorted, 200 mV)
Audio In / Out 8 / 2
Digital Input Yes (optical / coaxial)
USB Input Yes (type B)
Subwoofer Out Yes
DC out Yes
Pure Direct Yes
ToP-ART Yes
Switchable CD Direct Amplification Yes
Standby Power Consumption 0.5W
Power Management (Auto Power Standby) Yes
Dimensions (W x H x D) 435 x 152 x 387 mm; 17-1/8” x 6” x 15-1/4”
Weight 12.1 kg; 26.7 lbs.
